How to make Blu-ray with Truhd, blu-ray pcm, dts hd master, ac3 plus audio?

Blu-ray discs are designed to support avariety of audio formats, ranging from standard stereo to high-resolution surround sound. Here are some of the most common audio formats supported by Blu-ray:

Dolby Digital (AC-3):
Dolby Digital is a compressed audio format commonly used in DVD and Blu-ray discs. It supports up to 5.1 channels ofsurround sound and has a maximum bit rate of 640 kbps. It is capable of delivering high-quality audio with minimal compression artifacts.

AC3 Plus (also known as Enhanced AC-3 orE-AC-3) is an audio format that is an extension of the Dolby Digital (AC-3)audio codec. It was introduced in 2005 as an improved version of the originalAC-3 format, offering better compression efficiency and higher audio quality. Comparedto the original AC-3 format, AC3 Plus uses a more advanced coding algorithm and supports higher bitrates, which allows it to deliver better audio quality while using less storage space. AC3 Plus can support up to 7.1 channels of surround sound and has a maximum bitrate of 6 Mbps.

DTS (Digital Theater Systems):
DTS is another compressed audio format usedin Blu-ray discs. It supports up to 7.1 channels of surround sound and has ahigher maximum bit rate than Dolby Digital (up to 1.5 Mbps). DTS is known forits high-quality sound and is often used in high-end home theater systems.

PCM (Pulse Code Modulation):
PCM is an uncompressed audio format used inBlu-ray discs. It supports up to 7.1 channels of surround sound and can have amaximum bit depth of 24 bits and a sampling rate of 192 kHz. PCM is known forits high-fidelity sound and is often used for high-resolution audio.

Dolby TrueHD:
Dolby TrueHD is a lossless audio formatused in Blu-ray discs. It supports up to 7.1 channels of surround sound and hasa maximum bit rate of 18 Mbps. TrueHD provides high-fidelity sound without anyloss of quality.

DTS-HD Master Audio:
DTS-HD Master Audio is another losslessaudio format used in Blu-ray discs. It supports up to 7.1 channels of surroundsound and has a maximum bit rate of 24.5 Mbps. Like TrueHD, DTS-HD Master Audioprovides high-fidelity sound without any loss of quality.

Dolby Atmos:
Dolby Atmos is an object-based audio formatused in Blu-ray discs. It supports up to 128 simultaneous audio objects andprovides a more immersive audio experience by placing sound effects anddialogue in specific locations in the sound field.

Overall, Blu-ray discs provide a wide rangeof audio options, from standard stereo to high-resolution surround sound. Thechoice of format often depends on the content creator’s preferences and thecapabilities of the playback equipment.

The authoring software commonly used for creating Blu-ray and 4K UHD discs only supports 2-channel or 5.1-channel AC3 audio encoding and does not support more advanced audio formats like Truhd, Blu-ray PCM, DTS HD Master, or AC3 Plus. To support these advanced audio formats, a program called Yuhan Blu-ray Creator can be used. This software uses audio copy technology, which enables the copying of the original video’s audio without any loss in quality. Yuhan Blu-ray Creator is available for both Windows and Mac operating systems and boasts the following features.


1. All in one DVD, Blu-ray, UHD authoring software: DVD(PAL, NTSC), Blu-ray(720P, 1080P), 4K UHD.

2. Retain dolby vision & hdr10 by Passthough mode, support hdr10 transcoding.

3. Support multiple audio tracks, multiple subtitles, external subtitles.

4. Support almost all popular video formats,200+ video formats, including AVI, MP4, MKV, M2TS, FLV, MOV, WMV,VOB, Xvid, TS,etc.

5 Support almost all picture formats, 20+picture formats, including heic, heif, jpg, bmp, tiff, png, gif, webp etc.

6. Support photo slideshow, 20+ kinds of image transformation effects, support background music.

7. Save as folder, ISO, burn disc, support output PAL, NTSC format dvd, support output BD25, bd50, bd66, bd100 Blu-ray andUHD.

8. Support image and video Blu-ray, 4K UHD frame rate 23.976fps, 25fps, 29.97fps and 59.94fps.

9. Support output 2-channel stereo and 5.1-channel surround sound, support Audio Copy(Blu-ray PCM, TrueHD, DTS HDMaster, AC3 Plus).

10. Support AMD, INTEL, Nvidia graphics card acceleration, support mac os x videotoolbox acceleration, 10 times faster thansoftware transcode.

11. Offer 10+ presets beautiful DVD menu and Customize menu background image, background music, menu items.

12. Support video trimming and adding chapters.

The following takes the Windows version of Yuhan Blu-ray DVD Creator  as an example.

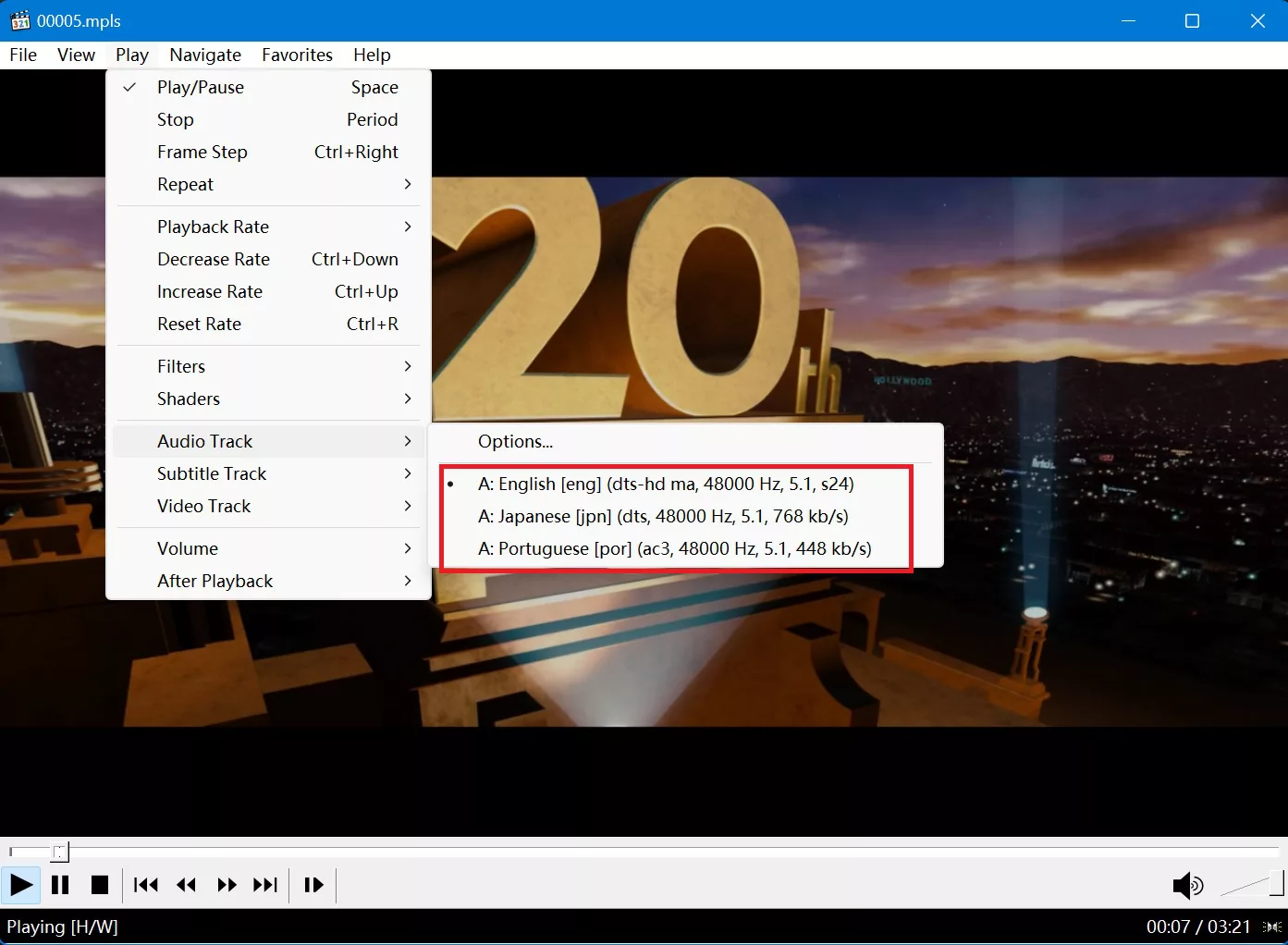

  • Add video files. You can choose multiple audio tracks and multiple subtitles, I choose 3 audio tracks, one is DTS HD Master, one is normal DTS, and one is this:
  • Do some settings on the video (optional), you can trim the video, set the chapter, set the language of the audio track and subtitle.
  • Select the menu, you can choose the built-in menu of the system, or customize the menu, including setting the background picture and background music, changing the position and text content of the menu items, and even deleting some items.
  • At this point, you need to set the Audio option to Audio Copy in the settings.
  • Save Option. Yuhan 4K UHD Creator software provides users with three output options: Blu-ray Folder, ISO, and burning to disc. If you intend to play or backup your 4K UHD on your computer, you can save it as a Blu-ray Folder or ISO, which allows you to play it using software such as vlc media player, Kodi, or PowerDVD, and can be burned to disc later on. If you want to play the content on your home UHD player, then selecting “burn to disc” would be the right choice. Additionally, users can set the Disc Volume to their preference.
  • Start making, wait for completion

Yuhan Blu-ray Creator, Yuhan 4K UHD Creator is an all in one DVD, Blu-ray, 4K UHD authoring software that supports Truhd, blu-ray pcm, dts hd master, ac3 plus. Go to www.yuhanmedia if necessary . Net download try it.
